Pipe Calibration

When cutting pipe there may be slight differences in size and shape from the measurements specified.

It is recommended to do a “Calibrate Pipe In/Out ” prior to cutting different pipe sizes so that the machine has an accurate measurement of the pipe diameter/shape.

You can do this by loading the pipe and waiting until it is inside the machine. Once the pipe is inside of the cutting cell and drawbridge has retracted so the arm can proceed the front cut, stop the machine. (If the pipe you are cutting does not have a front cut you can manually feed and clamp the pipe)

Select the “Settings” menu in “Main”.

Select the “Calibrate” menu.

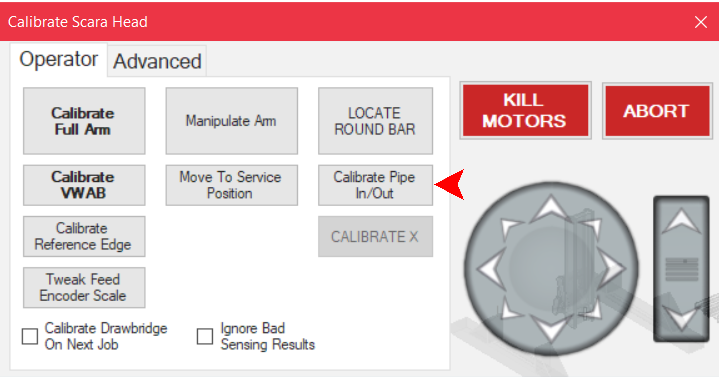

Once in the calibration window select the “Calibrate Pipe In/Out” button and wait for the process to finish,

Please ensure there is no scrap on the floor that could cause the arm to collide.
