Changing the way holes in pipe are cut inside ProfileShop

When cutting pipe, there are maximum limit that machine can cut through. If it cannot cut through, it will adjust the cut.

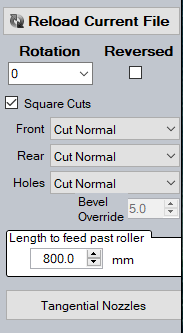

The settings I will mention are on the sidebar below the reload button.

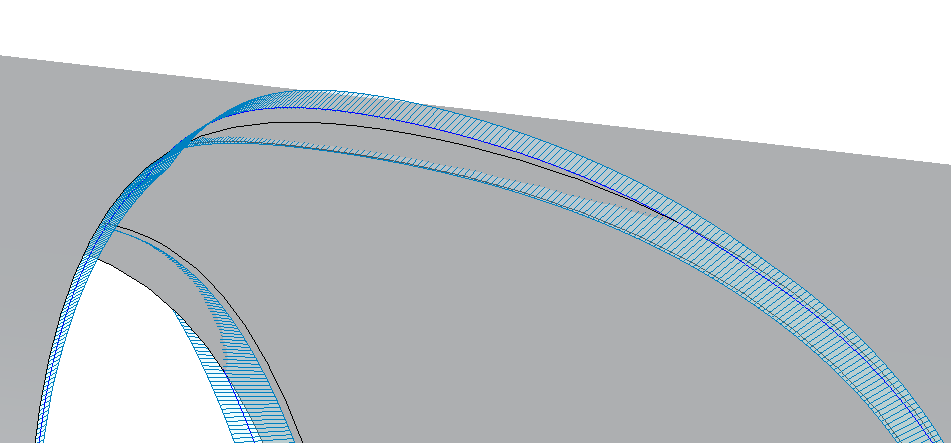

The cut will cut normal, but when the maximum cut angle/thickness is reached, it will treat the inside edge as the point to tilt from. Making the outside surface larger. This is usually desirable for most jobs.

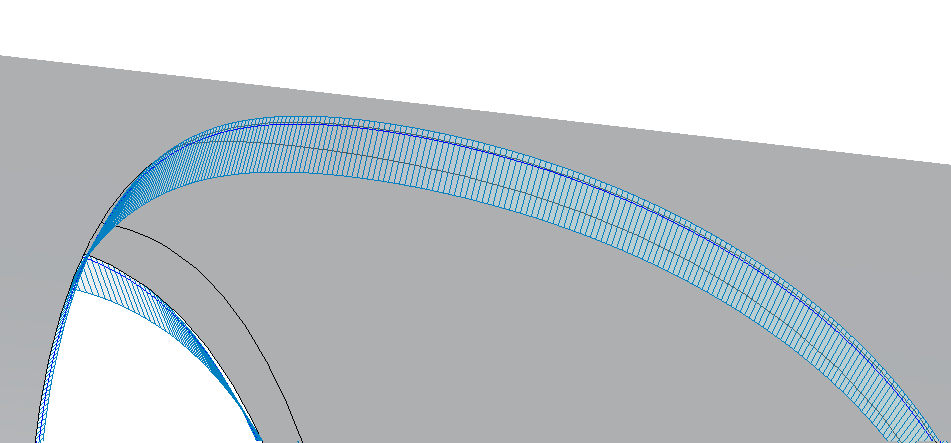

This will cut at 90 degrees to the cut that makes the hole bigger. No bevels will occur. This is preferable if something is needed to be slotted through, and a welding gap is fine. This is a popular option

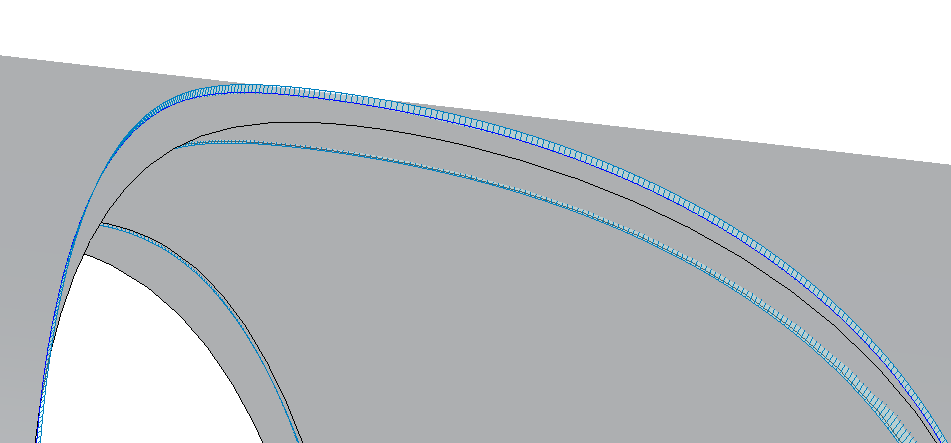

Like shortest edge, this will cut at 90 degrees to the cut that makes the hole smaller. No bevels will occur. This is preferable if no damage to the supplied drawing is desired, and grinders will be used to correct any missing angle. This is a less popular option
