Bevelled holes

Add a smart leader to the outside of a selected hole.

The degree value system is a little bit different for this one, we use 45- for an inwards bevel and -45- for an outwards bevel.

(We are using values of 45 degrees in these examples, use whatever values you require keeping in mind the machine will cut to 47 degrees but it is recommended not to exceed 45 degrees)

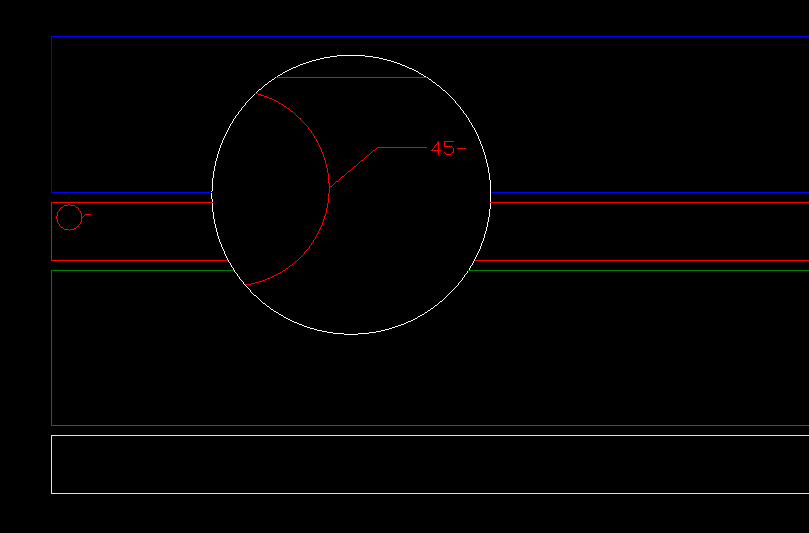

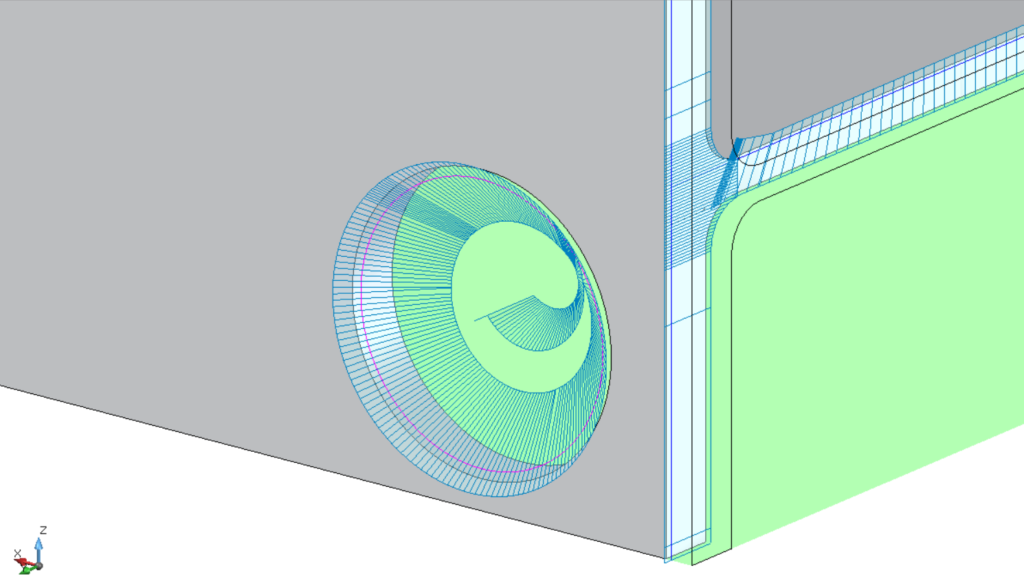

Inwards hole bevel

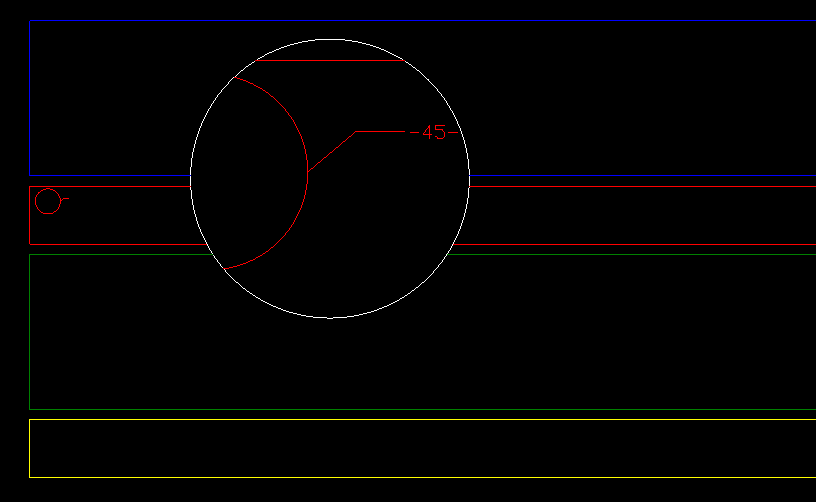

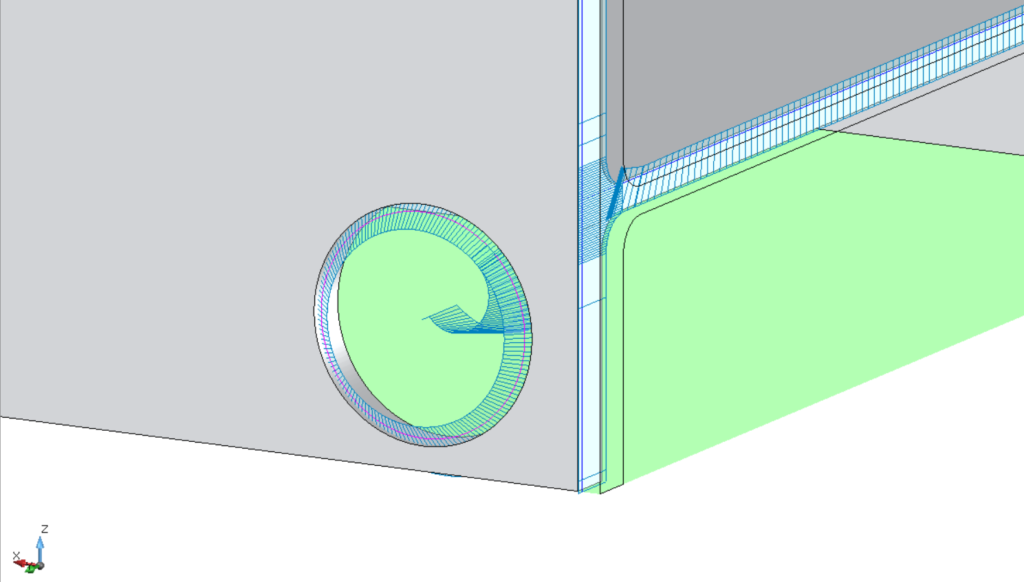

Outwards hole bevel
